Part Number

Description

Cable Diameter Range

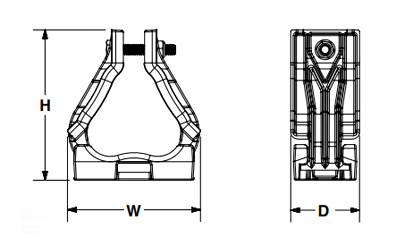

H

W

D

Weight

Mounting Holes

In.

mm

In.

mm

In.

mm

In.

mm

Lb.

g

CCALTR2326-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 23 - 26 mm.

0.91  - 1.02

23  - 26

3.92

100

3.98

101

2.17

55

0.81

370

1 x M8

CCALTR2528-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 25 - 28 mm.

0.98 - 1.10

25 - 28

4.06

103

4.15

105

2.17

55

0.85

385

1 x M8

CCALTR2730-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 27 - 30 mm.

1.06 - 1.18

27 - 30

4.19

107

3.86

98

2.17

55

0.85

388

1 x M8

CCALTR2932-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 29 - 32 mm.

1.14 - 1.26

29 - 32

4.33

110

3.87

98

2.17

55

0.87

397

1 x M8

CCALTR3135-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 31 - 35 mm.

1.22 - 1.38

31 - 35

4.55

116

3.96

101

2.17

55

0.92

418

1 x M8

CCALTR3438-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 34 - 38 mm.

1.34 - 1.50

34 - 38

4.77

121

4.18

106

2.17

55

0.93

424

1 x M8

CCALTR3741-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 37 - 41 mm.

1.46 - 1.61

37 - 41

4.99

127

4.41

112

2.17

55

0.98

448

1 x M8

CCALTR4044-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 40 - 44 mm.

1.57 - 1.73

40 - 44

5.24

133

4.63

118

2.17

55

1.05

477

1 x M8

CCALTR4347-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 43 - 47 mm.

1.69 - 1.85

43 - 47

5.52

140

4.85

123

2.17

55

1.14

516

1 x M8

CCALTR4651-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 46 - 51 mm.

1.81 - 2.01

46 - 51

5.83

148

5.05

128

2.17

55

1.23

558

1 x M8

CCALTR5056-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 50 - 56 mm.

1.97 - 2.20

50 - 56

6.20

158

5.50

140

2.17

55

1.32

602

1 x M8

CCALTR5561-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 55 - 61 mm.

2.17 - 2.40

55 - 61

6.57

167

5.72

145

2.17

55

1.42

647

1 x M8

CCALTR6067-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 60 - 67 mm.

2.36 - 2.64

60 - 67

7.01

178

6.15

156

2.17

55

1.55

706

1 x M8

CCALTR6675-X

Cable cleat, aluminum, trefoil configuration
with a cable diameter of 66 - 75 mm.

2.60 - 2.95

66 - 75

7.93

193

6.72

171

2.17

55

1.73

787

1 x M8
