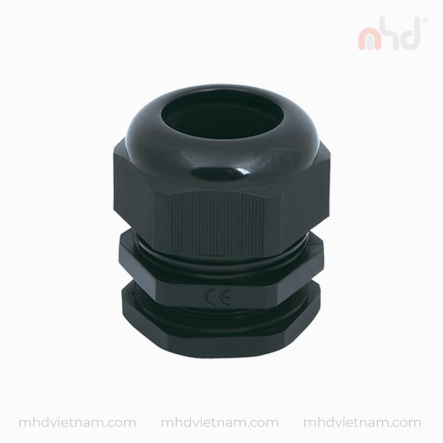

PG Type Metallic Waterproof Cable Gland
|
Type |
Cable Range (mm) |
Thread O. D. AG (mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|---|---|---|---|---|
|
PG7 |
3~6.5 |
12.5 |
8 |
16 |
|
PG9 |
4~8 |
15.2 |
8 |
19 |
|
PG11 |
5~10 |
18.6 |
8 |
22 |
|
PG13.5 |
6~12 |
20.4 |
10 |
24 |
|
PG16 |
10~14 |
22.5 |
10 |
27 |
|
PG19 |
12~16 |
24 |
10 |
27 |
|
PG21 |
13~18 |
28.3 |
10 |
33 |
|
PG25 |
16~21 |
30 |
11 |
35 |
|
PG29 |
18~25 |
37 |
12 |
42 |
|
PG36 |
22~32 |
47 |
14 |
52 |
|
PG42 |
32~38 |
54 |
14 |
60 |
|
PG48 |
37~44 |
59.3 |
15 |
64 |
|
PG63 |
42~50 |
71 |
28 |
77 |
M Type Metallic Waterproof Cable Gland
|
Type |
Cable Range (mm) |
Thread O. D. AG (mm) |
Thread Length GL (mm) |
Spanner Size (mm) |
|---|---|---|---|---|
|
M12 x 1.5 |
3~6.5 |
12 |
8 |
16 |
|
M16 x 1.5 |
4~8 |
16 |
8 |
19 |
|
M18 x 1.5 |
5~10 |
18 |
8 |
22 |
|
M20 x 1.5 |
6~12 |
20 |
10 |
24 |
|
M22 x 1.5 |
10~14 |
22 |
10 |
27 |
|
M24 x 1.5 |
12~16 |
24 |
10 |
27 |
|
M25 x 1.5 |
13~18 |
25 |
10 |
33 |
|
M27 x 1.5 |
13~18 |
27 |
10 |
33 |
|
M30 x 1.5 |
16~21 |
30 |
11 |
35 |
|
M32 x 1.5 |
16~21 |
32 |
11 |
35 |
|
M36 x 1.5 |
18~25 |
36 |
12 |
42 |
|
M40 x 1.5 |
22~32 |
40 |
14 |
52 |
|
M50 x 1.5 |
32~38 |
50 |
14 |
60 |
|
M63 x 1.5 |
37~44 |
63 |
15 |
64 |
|
M71 x 1.5 |
42~50 |
71 |
28 |
77 |
